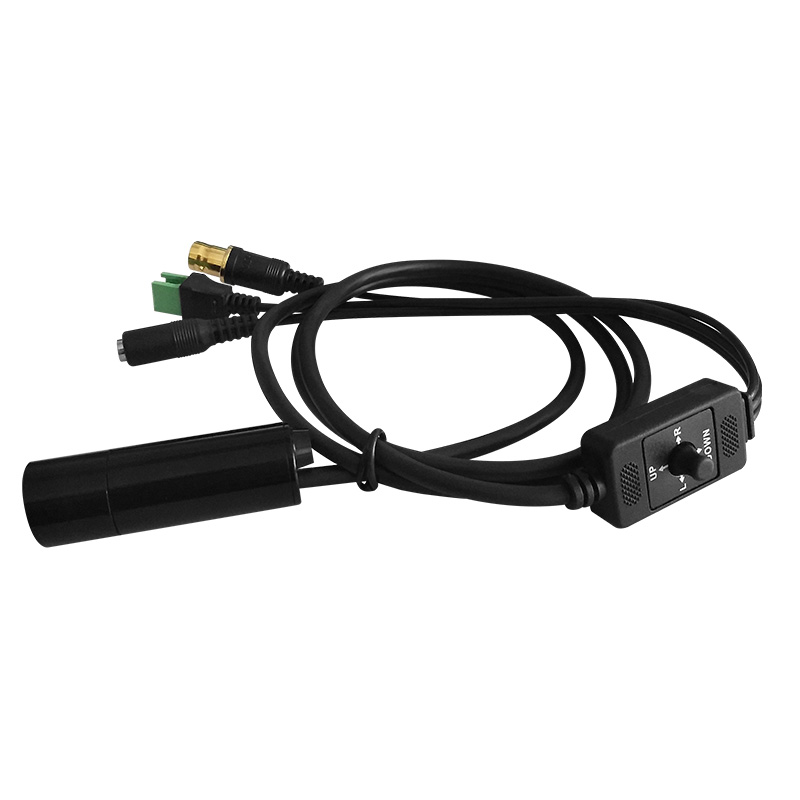

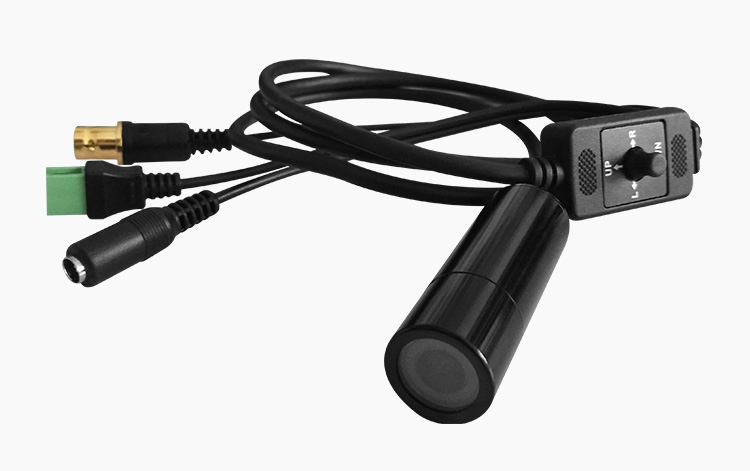

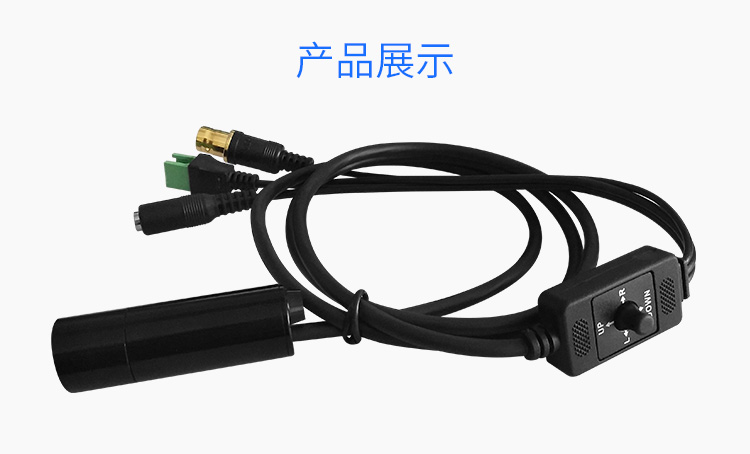

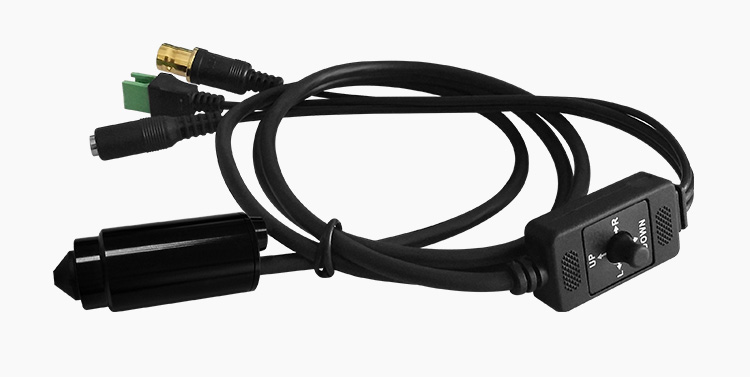

HD SDI 1080P 30帧或60帧高清摄像头 3G SDI 穿戴式摄像机 RS485
1.镜头Lens---3MP HD lens
2.成像器件Image Device---1/3” type Panasonic CMOS
3.扫描器件Scanning System---Progressive Scan
4.总像素Total Pixels---1956(H) x1266(V) : 2.48Mega pixel
5.有效像素Effective Pixels---1944(H) x 1092(V) :2.12Mega pixel

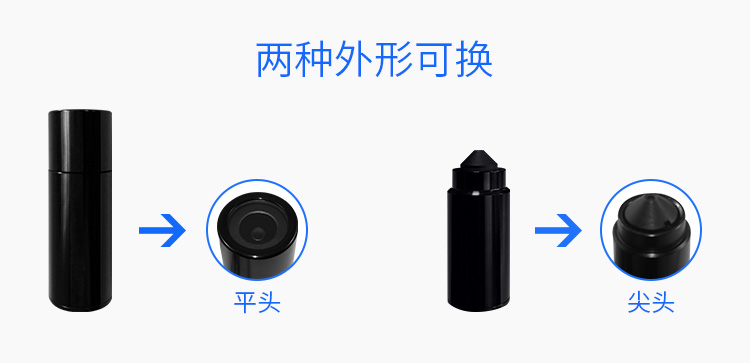

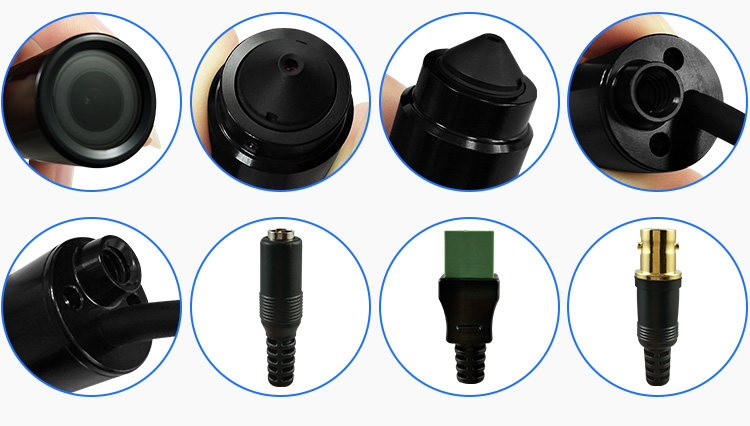

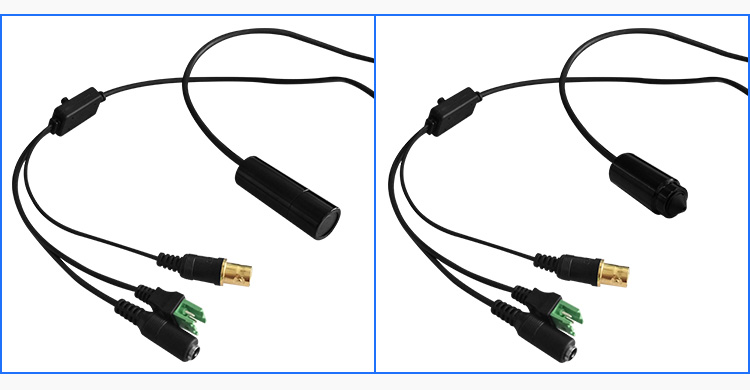

6.可换镜头Lens fitted---Board, Pinhole
7.最低照度Min. Illumination---0.3Lux--F2.5 , 30IRE
8.同步方式Sync System---Internal
9.电子快门Electronic Shutter---60Hz:1/30~1/30,000sec,50Hz:1/25~1/30 000sec

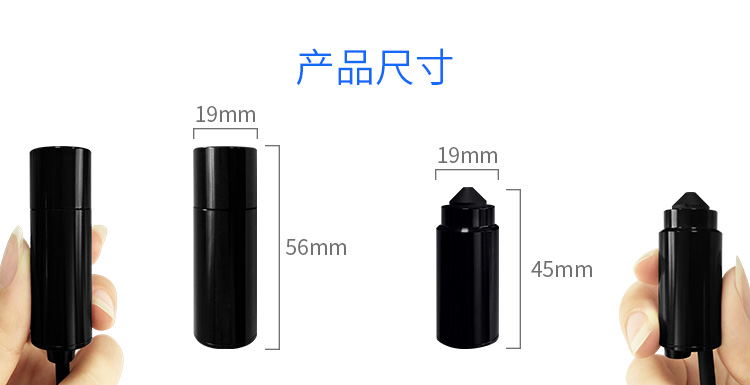

10.产品尺寸measure---19mm(D)x45mm(L)

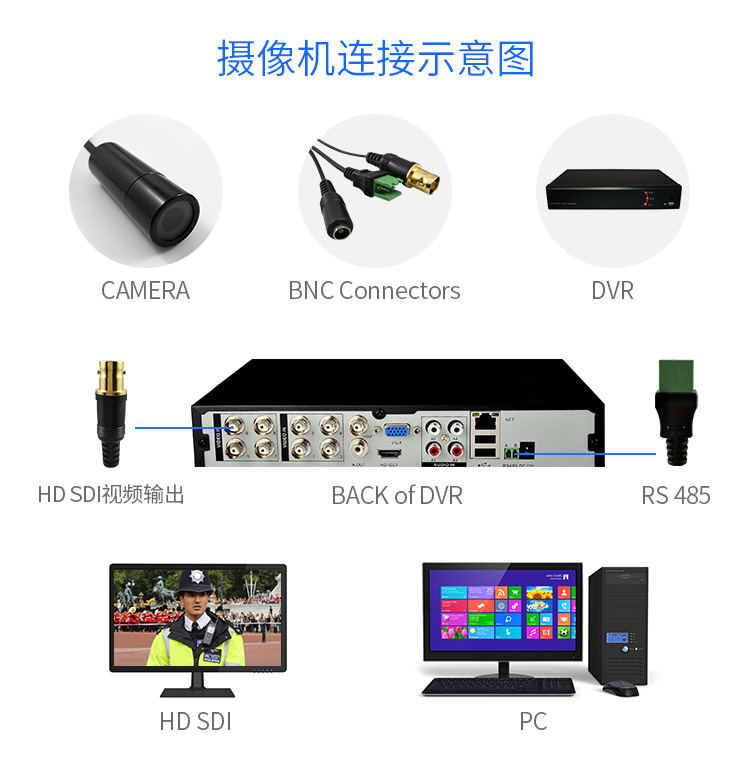

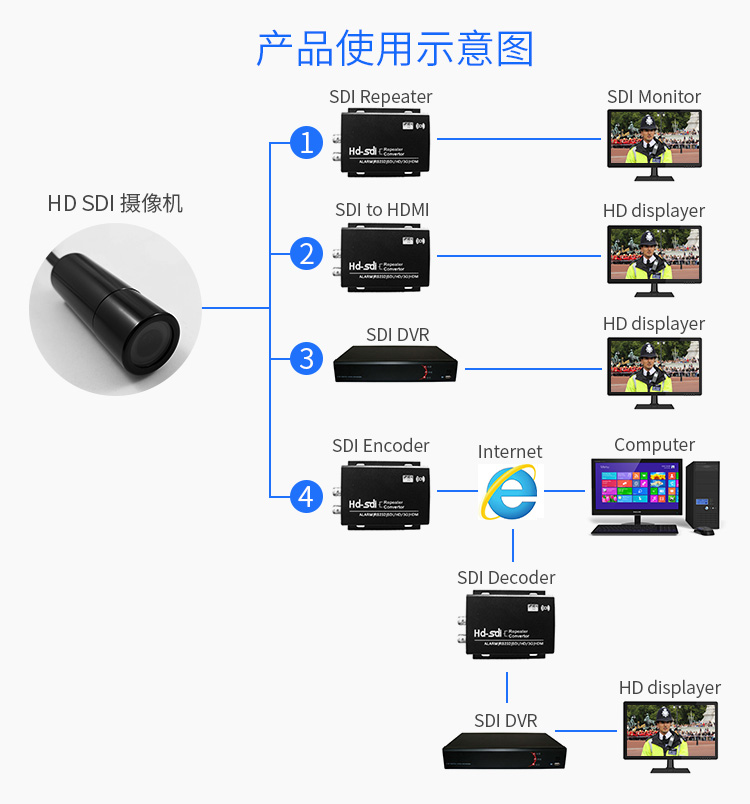

11.输出Output 1---HD-SDI(max. 1080@60p), EX-SDI
12.输出Output 2(option)---CVBS (NTSC, PAL) without WDR
13.视频效果及帧率Resolution& Frame rate---1080@60i/50i,1080@60p/50p,1080@30p/25p, 720@60p/50p, 720@30p/25p
